4.3 Inch Video Baby Monitor With Pan Tilt Cam 2.4G Wireless Two Way Audio Night Vision Security Cam Babysitter VB801

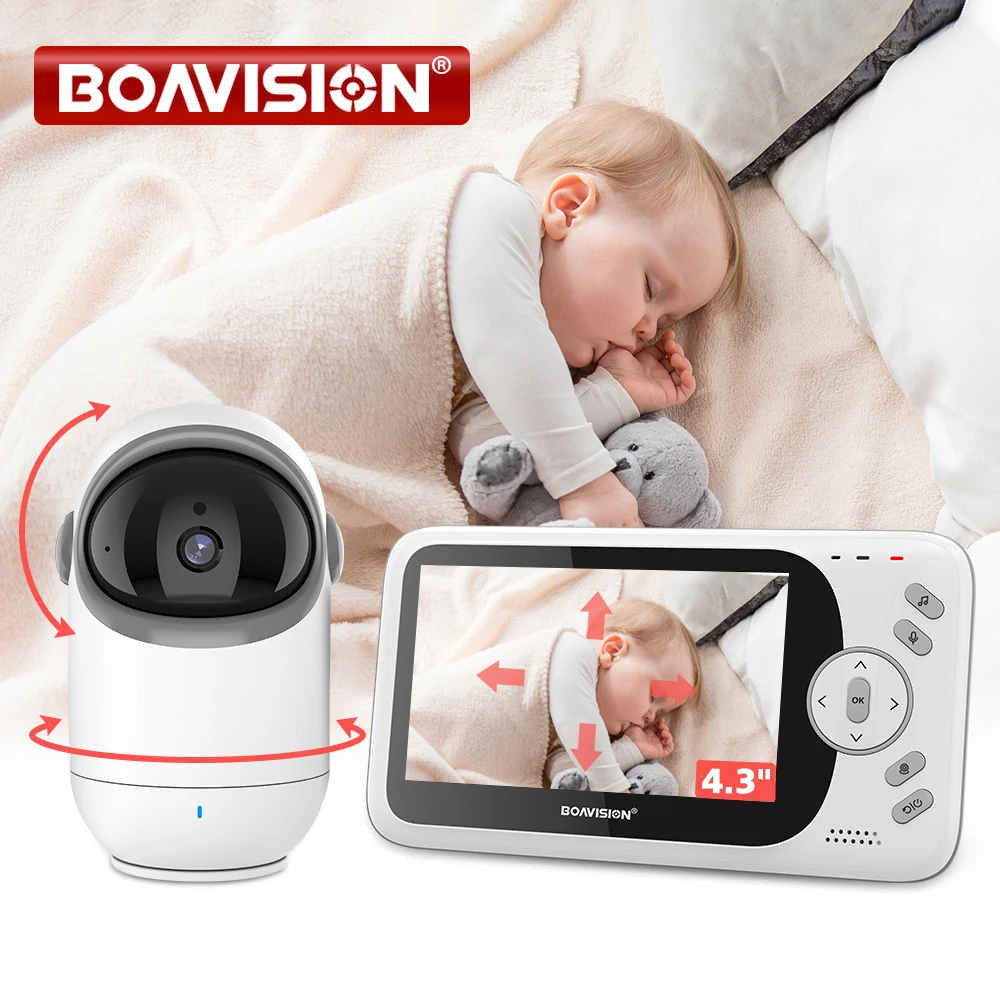

4.3 Inch Video Screen Baby Monitor With Pan Tilt Cam

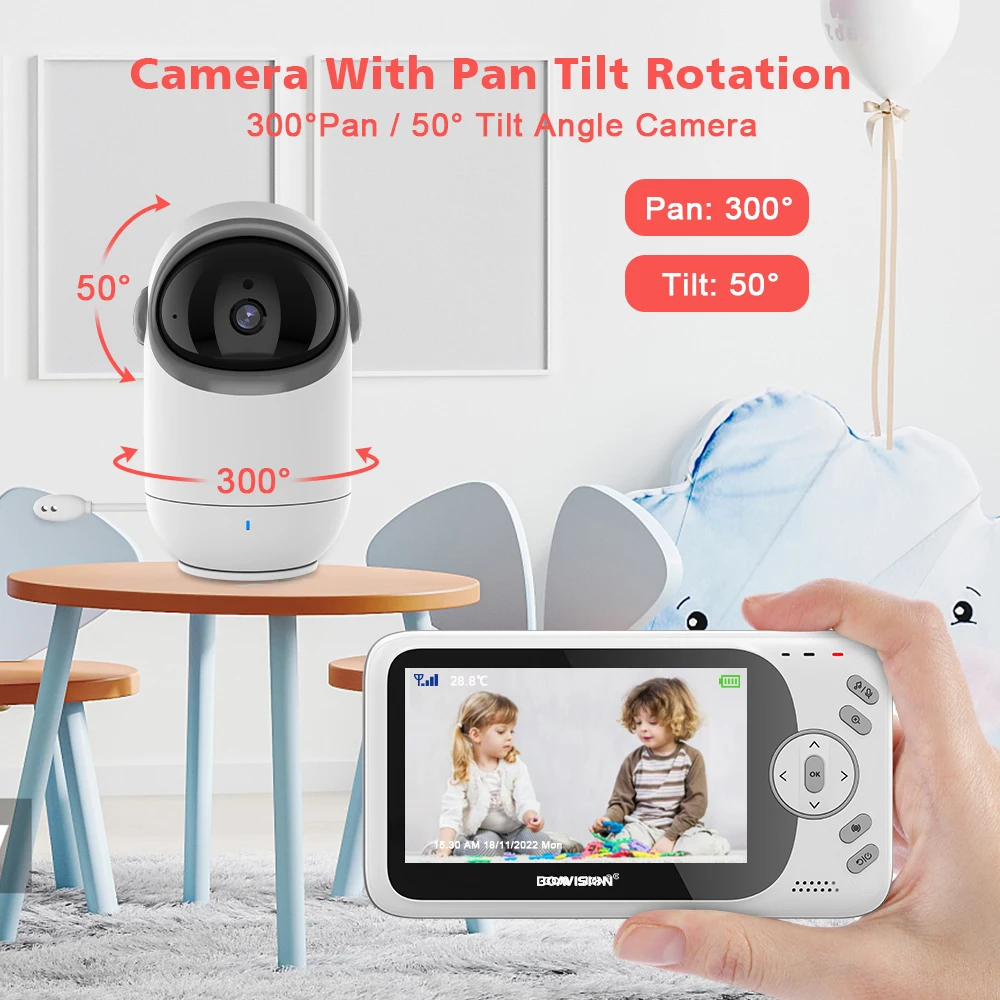

Pan Tilt Cam

Pan :  300° ,  Tilt : 50°

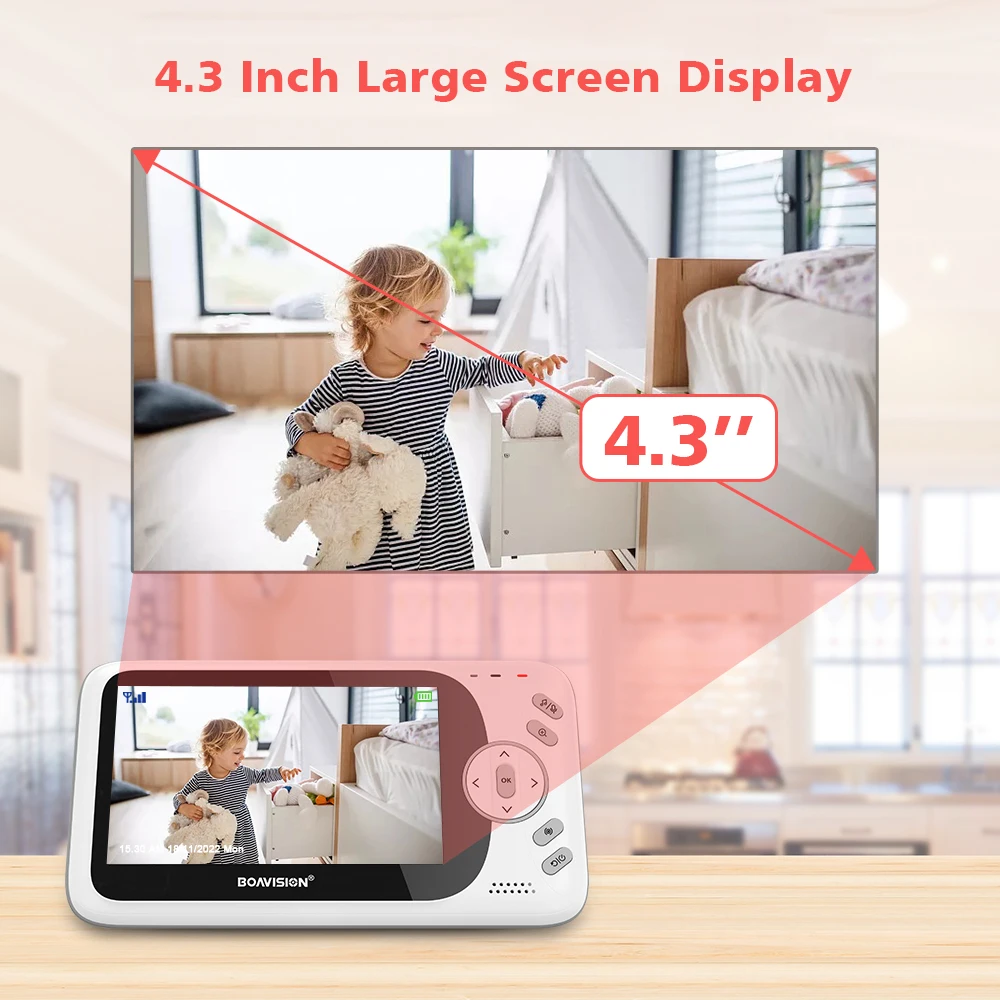

4.3 Inch Large Screen Display

Two Way Audio

You can talk with your baby in long distance,without running back

Automatic Night Vision

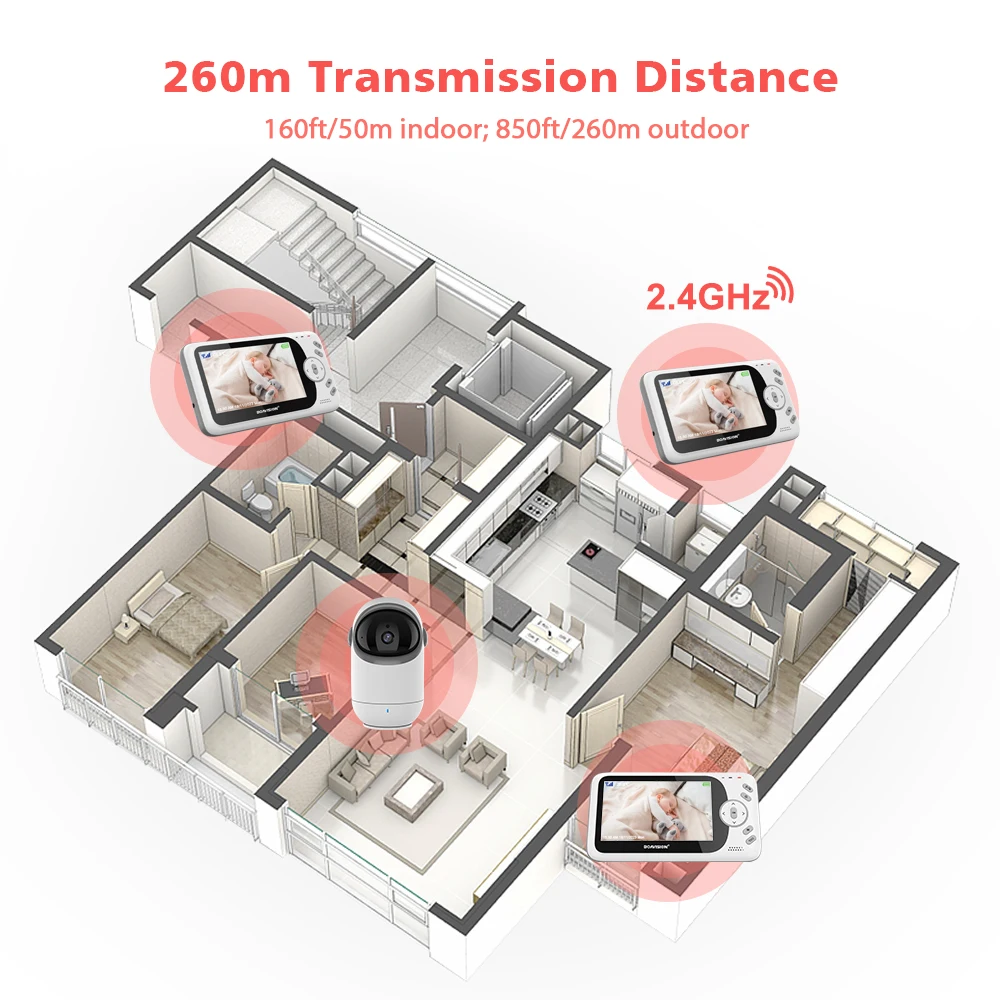

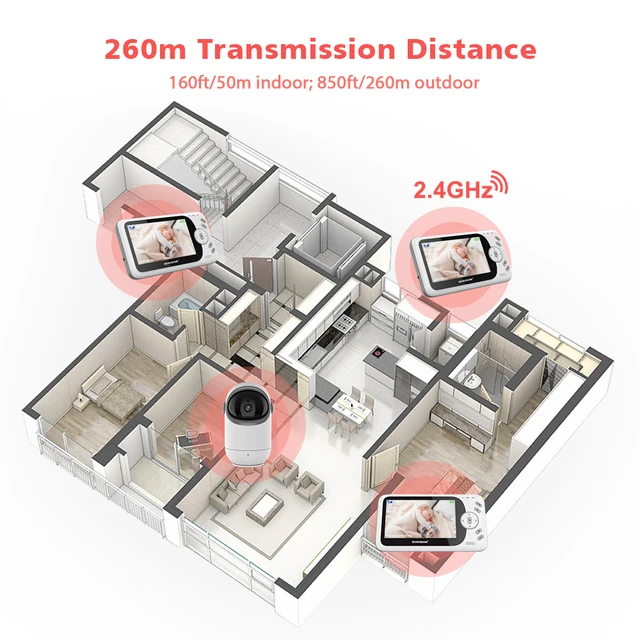

260m Transmision Distance

Pairing cam:

-The enclosed baby unit has already been registered,you don't need to register it again.

Night vision:

-The baby unit has 6 high intensity infrared Leds for picking up clear images in the dark.

Music player:

-Click the music player key to turn on the music player and play a lullaby on the baby unit; press the music player key again to turn it off.

Voice function:

-Press and hold PTT key on the parent unit to talk to your baby through the baby unit loudspeaker. The symbol will be displayed at the middle of the screen.

Adjusting the volume:

-When the video is playing mode,press volume key to adjust the volume . The display will show the current volume for 3s.

Vox Function:

-In VOX mode, the screen will go into sleep automatically to save power . It will reactivate automatically when it detects any sound in the baby's room. Press VOX key again to turn to Normal mode. VOX sensitivity : Low / Medium / High level .

Pan and tilt:

-In the monitoring interface, click the pan&tilt function key, then click up/down/left/right key to remotely pan or tilt the cam .

 Click the pan&tilt function key again or no operation for 5s will exit the pan&tilt function.

Language:

-Russian/English/French/Spanish/Portuguese/Italian/German/Turkey.

Anti-flicker:

-You are able to adjust the frequency of 50/60 HZ to suit your lighting for anti-flicker.

Temperature unit:

-Switch the unit to celsius or fahrenheit .

LCD backlight:

-You are be able to adjust the brightness of the LCD you are viewing and the LCD backlight active time in menu operation.

Specification:
Gernal:
1.Frequency: 2.4GHz
2.Unobstructed Effective Range: 160ft/50m indoor , 850ft/260m outdoor line of sight
3.Modulation Mode: GFSK
4.Operating Temperature:  14 ~ 122° Fahrenheit / -10 ~ +45° Celsius
5.Operating Humidity:  <85%

Monitor:
1.LCD Size:  4.3 Inch
2.Resolution Supported:  480X272 pixel
3.Consumption Current:  200mA

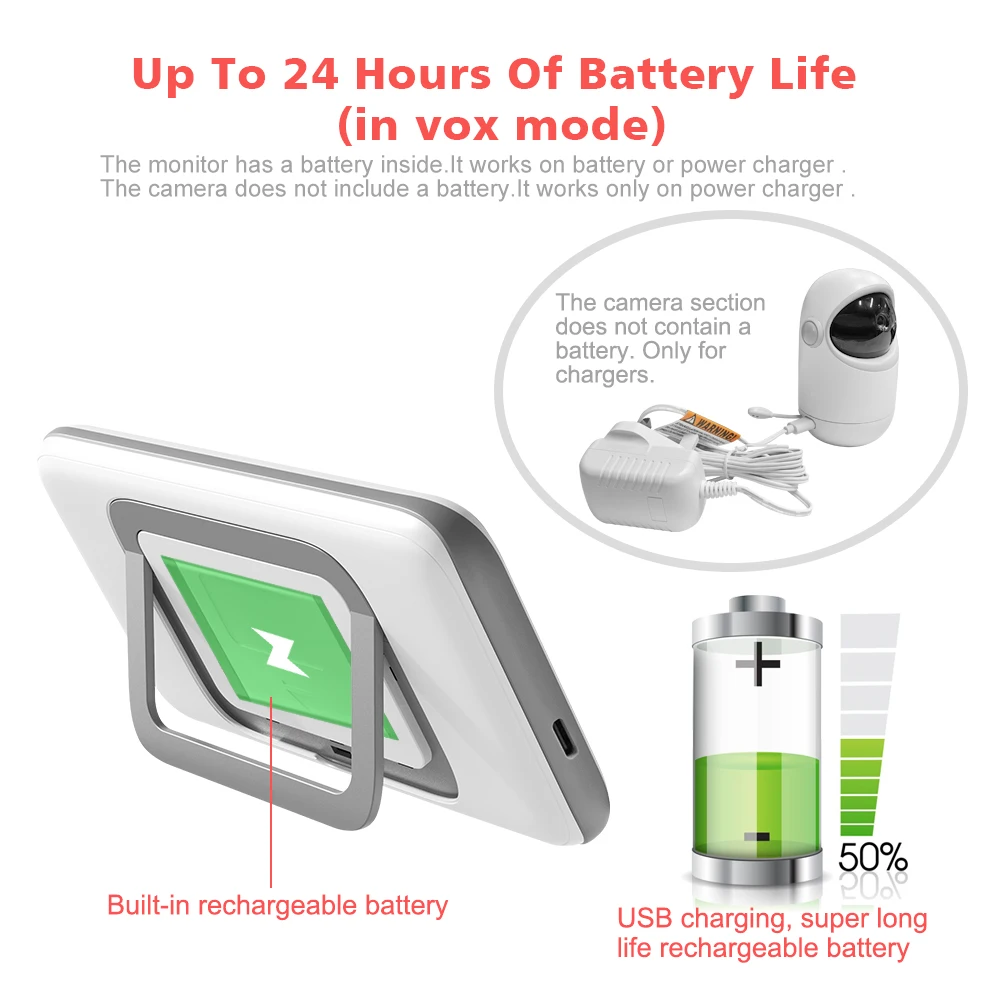

4.Battery:  Li-polymer 1760mAh
5.Power Supply:  5V/1000mA DC
6.Dimensions (W x H x D):  82.5mm x 151.6mm x 19.5mm

Cam:

1.Image Sensor:  CMOS
2.Minimum Illumination:  0 Lux (IR on)
3.Night Vision Distance:  15 FT (5m)
4.View Angle: pan :  300° ,  Tilt :50°
5.Power Consumption:  200mA
6.Power Supply:  5V/1000mA DC
7.Dimensions (W x H x D):  72.5mm x 116mm x 66.2mm

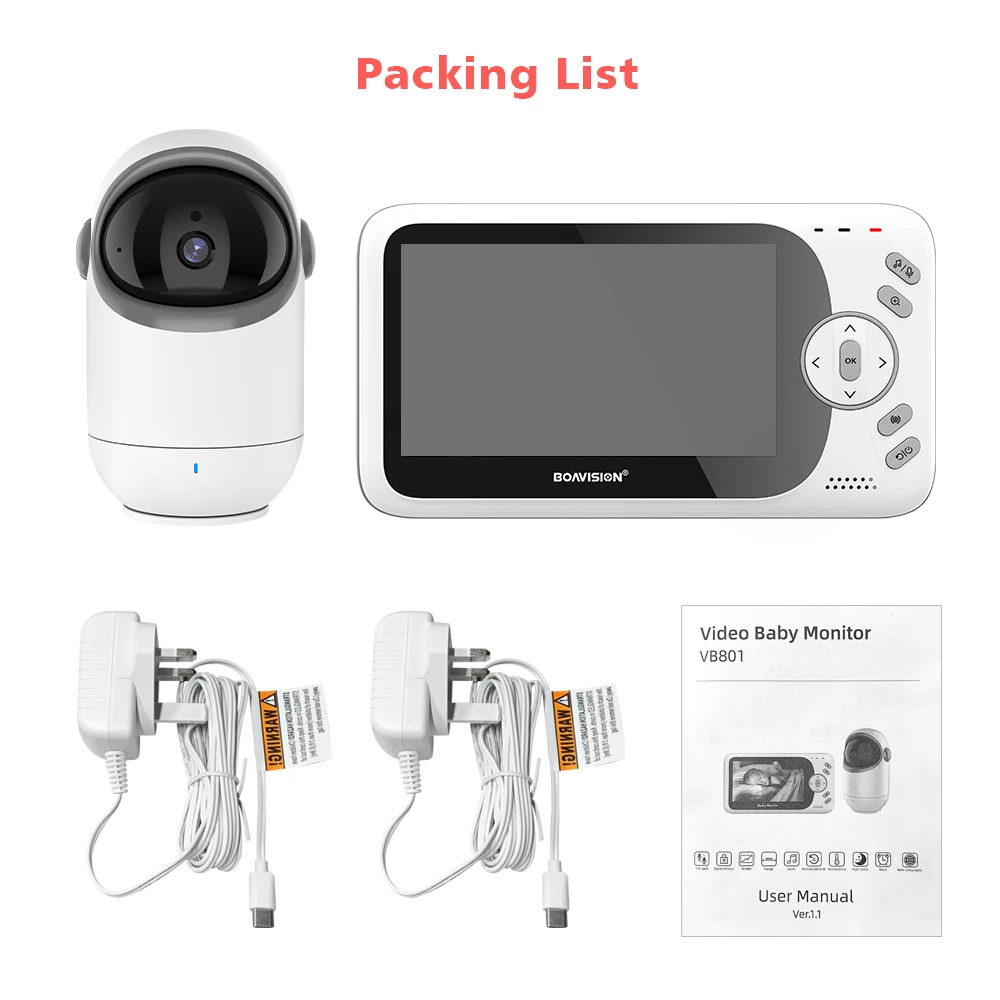

Package Contents:

1 x Parent unit (Monitor)

1 x Baby unit (Cam)

2 x Power Adapter

1 x English User's Guide
