- AI Functions: Human Detection
- Shell Material: Metal
- Color Night Vision: no
- IP Rating: other
- App name: other
- Rechargeable Battery Capability: other
- Scene: Indoor
- Megapixels: 8MP
- TF Card: None
- Power Supply: With POE
- Storage: None
- Installation: Normal
- Color: WHITE
- is_customized: No
- Audio Output: no
- Minimum Illumination(Lux): 0.01LUX
- Viewing Angle : 180°
- Video Compression Format: H.264,H.265
- IR Distance(m): 5-25M
- Dimensions (L x W x D)(mm): 115*80mm
- Power Supply(V): DC 12V /48V PoE
- Alarm Action: FTP Photo,Email Photo
- Power Consumption(W): 3W
- Supported Mobile Systems: Android,IOS
- Sensor Brand: SmartSens
- Special Features: Vandal-proof
- Sensor: CMOS
- Model Number: QJ6D4KDN
- Supported Operating Systems: Windows 10,Windows 2008,Windows 2000,Windows Vista,Windows 8,Windows 7,Mac OS,Windows XP,Windows 2003
- Lens (mm): 1.7mm
- Connectivity: IP/Network Wired
- High Definition: 8.0 Megapixels
- Style: Fisheye Camera
- Brand Name: Gadinan
- Origin: Mainland China
- Certification: CE
- Smart home platform: other
- Shell material: Metal
- Day& Night: IR Cut filter with auto switch

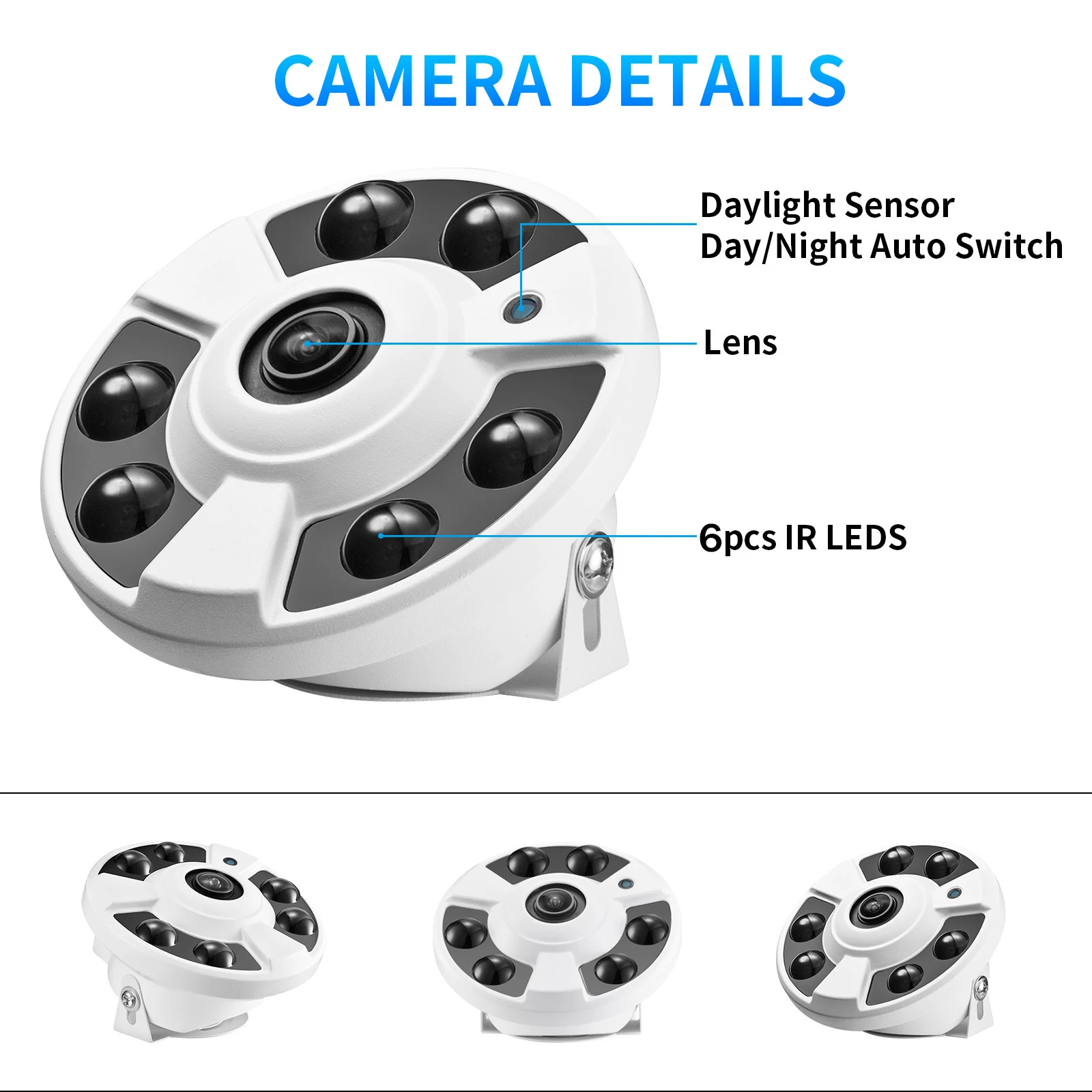

- Camera Function: 6pcs array IR leds+Night Vision
- Support Language: Multi language(English,Spanish,Russian etc.)
- Resolutions: 4MP/5MP/8MP
- APP: depends on NVR or Linklemo APP
Enhanced Security Monitoring with HDR
Your security camera uses HDR (High Dynamic Range) technology that works to ensure you capture the most important details, regardless of lighting conditions. Dynamic range is measured as the difference between the brightest point and the darkest point of the video. HDR technology uses this difference to automatically adjust the picture's brightness, resulting in optimized, highly-detailed security video.
3DNR Enhanced Clarity in Low-Light Situations
Your camera uses DNR (Digital Noise Reduction) technology to filter out noise from low-light settings as well any noise caused by motion. By eliminating graininess, your camera provides a cleaner, more accurate image with better clarity, sharpness, and improved motion detection, enhancing your HD experience even in the dark! Not only does DNR reduce noise, but it reduces video file sizes as well, giving you greater disc space for storage.
Advanced H.265 Video Compression
Reduces file size up to 40%-50% with the same quality. save 40%-50% or more bandwidth H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264.That means that1. H.265 saves space; 2. store more videos; 3. provide super smooth to view video .
High Quality Night Vision Smart Infrared Cut Filter (ICR)
Camera has a very good night image quality. Infrared Cut Filter to ensure the highest quality images – day and night. During the day, the infrared cut filter drops in front of the lens to block the infrared lights from entering. This ensures that they do not affect the colors of the footage. When lighting levels become too low, this filter is automatically disengaged to allow the infrared light into the lens of the camera. This is when the full-color image turns to a monochrome black and white.
Support Audio Record
Built-in a integrated microphone let you hear the sound around the camera,records what people say,
make it authentic with sound video recording.(Don't support Two way audio)
Motion Detection & Email Alert
POE Advantage, Why Choose POE ?
Don't need extra power cables or adapters or switch.Plug And Play and easy setup.
Use our NVR Work 4K for 24/7 Reliable Recording,Multiple Viewing Methods,Smart Motion Detection
If you have multiple IP cameras or if you want 24/7 recording, a POE NVR is your best choice. The NVR works perfectly and efficiently with the cameras for round-the-clock monitoring and recording for your home & business security and surveillance.Support mobile phones, tablet computers, and multi-platform viewing.When you go outside,you needn't to worry about your property security. By using this cctv system,you can remote view live video simultaneously at anytime, anywhere with wifi/4G on smartphone/iPad/PC.Whenever a danger is detected, this surveillance camera will trigger alerts by immediately sending alert e-mails and pushing notifications to your device. You can create specific motion detecting zones to monitor certain areas as you want. You can adjust motion detection sensitivity to reduce false alerts.
DC 12V and 48V PoE Version Optional
Warm Tips:
DC 12V Version:Can Just Work With DC 12V 1A-2A Power Supply (NOT INCLUDED)
48V POE Version: Has PoE Module Inside
Which Can Work With DC 12V 1A-2A or 48V PoE Switch/Injector (NOT INCLUDED)
● 4MP 5MP 8MP Resolution Optional.
● H. 265/H.264 High Profile, support dual-stream, AVI format.
● With IR-CUT, Support day/night switch, up to 25m IR night vision.
● 8MP(4K):3840X2160,15fps
● 5MP: 2880X1616,25fps
● 4MP: 2560X1440 ,25fps
● Power way: DC 12V/ 48V PoE Optional.
● 6pcs array IR LED, 5-25m IR distance for night vision.
● Multi-screen and VMS.
● Image processing: auto exposure(AE), auto white balance(AWB), auto gain control(AGC).
● Support motion detection.
● Support onvlf, can work with third-part NVR.
● Mobile phone viewing (iOS,android) depends on NVR APP or Linklemo APP.
● Interface:1pcs RJ45 10M/100M self-adaptive Ethernet interface.
● DC 12V 1A-2A ( Not included ) Or 48V PoE Switch/Injector For PoE version ( Not included ).
● Working condition: -20~55 degree Celsius, humidity less than 90%(non-condensing).
● Suitable for:indoor use
Note:
48V POE Camera : It can connect 48V PoE injector or 48V POE NVR through 8-core network cable(no power supply required),
If you don't have 48V PoE injector or 48V POE NVR, it needs to connect 12V 1A/2A power adapter (not included)
