- Hign-concerned Chemical: none
- AI Functions: Vehicle Detection
- Shell Material: Metal
- Color Night Vision: YES
- Megapixels: 8MP
- Installation: Ceiling
- Color: WHITE
- Audio Output: Two Way Audio
- Viewing Angle : 180°
- Video Compression Format: H.265
- IR Distance(m): 30R
- Power Supply(V): 12V
- Alarm Action: Email Photo
- Supported Mobile Systems: Android,IOS
- Special Features: Waterproof / Weatherproof
- Sensor: CMOS
- Model Number: PG2386IRCS-P
- Supported Operating Systems: Windows 98,Windows XP,Windows 7,Windows 2008,Windows 10,Windows 8
- Lens (mm): 2.8mm
- Connectivity: IP/Network Wired
- High Definition: 8.0 Megapixels
- Style: PT Camera
- Brand Name: Ziksecu
- Origin: Mainland China
- Certification: CE
- Smart home platform: other

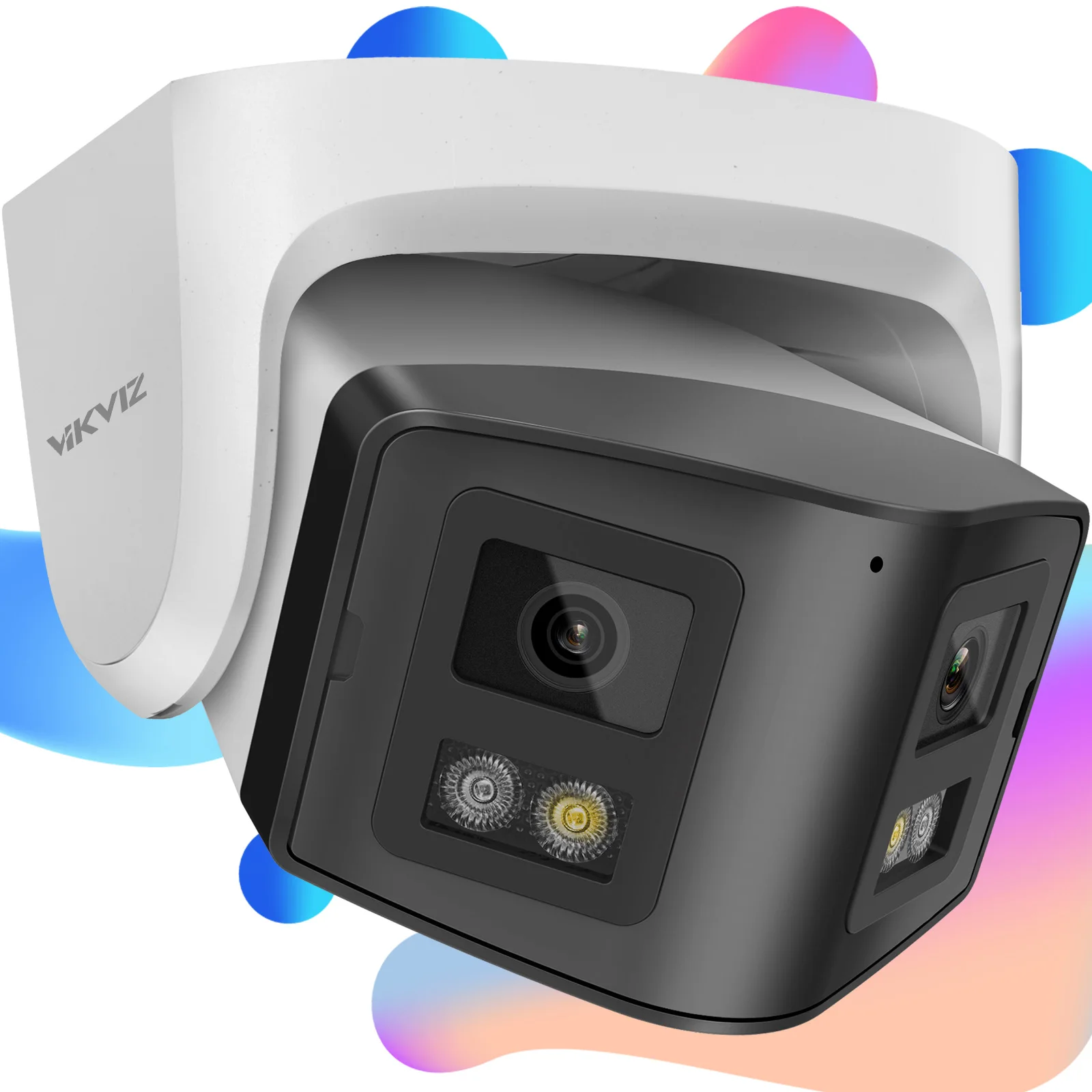

Hikvision Compatible 4K 8MP 180° Panoramic IP Camera IR&ColorVu 2-way Audio Human Detection SD Card Slot Plug&Play HIK NVR
1.what is "HIK Protocl "?
HIK products all haveHIK Protocland it support HIK cameraplug and play,make it easy to be install with HIK NVR.
2.what is "HIK compatible"?
Is mean this camera supportplug & playwithHIK NVR(Also HIK software).You don’t need to manual setting camera IP and password etc…Just plug in and camera will work!
If you wanna some ptz or camera can compatible with your HIK products and software this camera is best choice for you.It’smore cheaper than HIK original and have good quality at image!

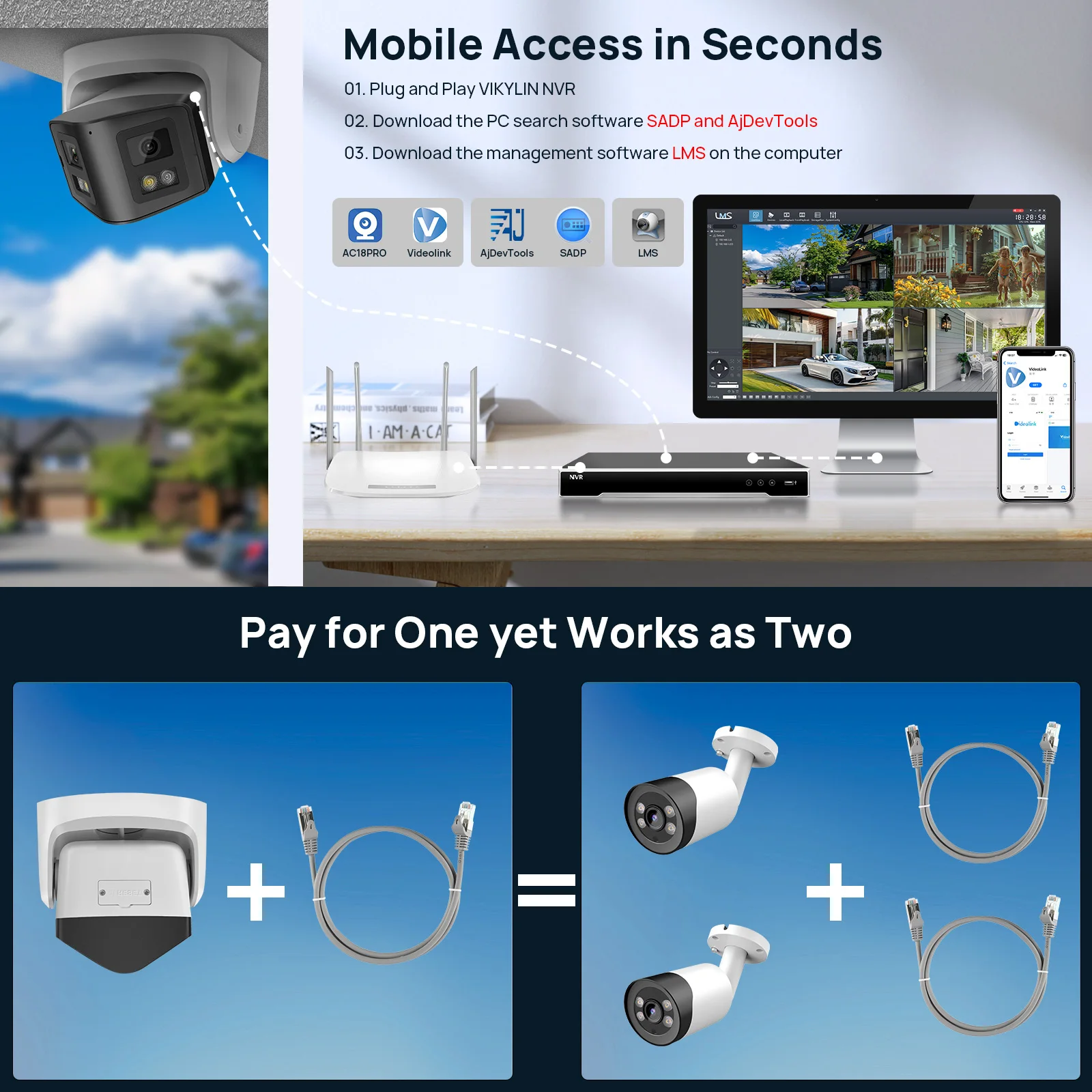

Which software can i use to find this camera? (username:admin passward:123456)
Software1
AJDevTools:http://www.anjvision.com:8021/client/AjDevTools_V5.2.1_20210108.exe
Software2
>APP: AC18PRO ( IOS,Android), support download by QR code
2 x 1/2.9" GC2063 CMOS
3840 × 2160@20fps
2 x 4 mm fixed lens
H.265+, H.265, H.264
F2.8 lens
Built-in Microphone
White Light & IR Range: up to30 m
WDR/HDR/3D DNR/HLC/BLC

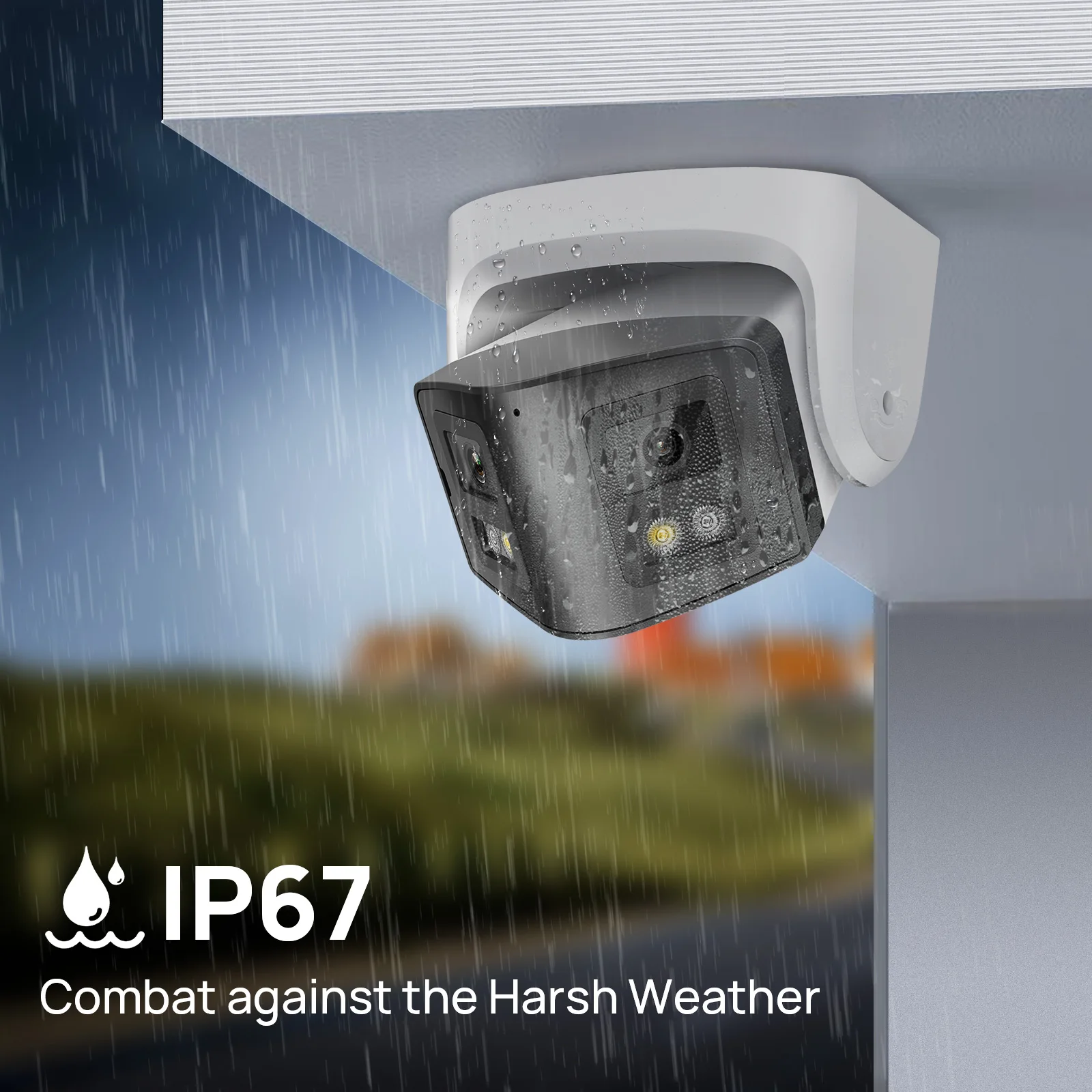

Water and dust resistant(IP67)
Color: 0.05 lux @(F1.6), 0 lux with IR light
Angle adjustment
1.Camera
Image Sensor:1/2.9" GC2063 CMOS
Min. Illumination:Color: 0.05lux @(F1.6), 0 lux with IR light
Shutter Speed::1/10 s to 1/10,000 s
Slow Shutter:Yes
Day & Night:IR CUT Filter
Digital Noise Reduction:3D DNR 2D DNR
WDR:120dB
Angle Adjustment:Pan: 0° to 360°, tilt: 0° to 180°, rotate: 0° to 360°
2.Lens
Focal Length:Fixed focal lens,dual lens, 4 mm
Aperture:F1.6
Focus:Fixed
Focus Length & FOV
FOV:4 mm, horizontal FOV: 170°, vertical FOV: 40°
Lens Mount:M12
3.Illuminator:
White Light & IR Range:Up to 30 m
Smart Supplement Light:Yes
Compression Standard:
Video Compression:
Main stream: H.265+/H.265/H.264
Sub-stream: H.265+/H.265/H.264
H.264 Type:High Profile/Main Profile/Base Profile
H.265 Type:High Profile/Main Profile/Base Profile
H.265+:High Profile/Main Profile/Base Profile
Smart Feature-set:
Smart Event:Human detection
Basic Event:Motion detection
Linkage Method:Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email
Trigger notification: HTTP, Email
4.Image
Max. Resolution:3840 × 2160
Main Stream:
50Hz: 20 fps 3840 × 2160
60Hz: 20 fps 3840 × 2160
Sub-Stream:
50Hz: 20 fps 3840 × 2160
60Hz: 20 fps 3840 × 2160
Image Enhancement:WDR/HDR/3D DNR/2D DNR/HLC/BLC
Image Setting:Rotate mode, saturation, brightness, contrast, sharpness, and white balance adjustable by client software or web browser
SVC:H.264 and H.265 encoding support
Day/Night Switch:Day/Night/Auto/Schedule
5.Network
Network Storage:Support local storage and NAS (NFS, SMB/CIFS)
Protocols:HTTP, RTSP, DHCP, FTP, NTP,ONVIF,P2P,SMTP,RTMP
Client:AJ_Client,AC18Pro,Videolink
6.Interface:
Communication Interface:1 RJ45 10M/100M self-adaptive Ethernet port
Built-in Microphone :Yes
Built-in Speaker:Power: 3W.MAX. Sound pressure lever:10cm: 100dB.
Reset Key:Yes
On-Board Storage:Built-in memory card slot, support microSD card,up to 512GB
7.General
Operating Conditions:-30 °C to +85 °C, humidity 95% or less (non-condensing)
Web Client Language:14 languages: English,Russian,German,Italian,Turkish, Korean,Japanese,Traditional Chinese, Simple Chinese,Ukrainian,Portuguese,Croatian,Polish,Farsi
Power Consumption and Current:DC 12V, 1 A, max. 10 W Φ 5.5X2.1 mm coaxial plug power
PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12.5W
Protection Level:IP67-Each Camera has been tested waterproof
Material:Front cover:metal,body:metal,bracket:metal
Dimensions:Camera: 236.1 × 110 x 74mm (9.29" × 4.33 x 2.91")
Package: 325 × 125 × 120 mm (12.8" × 4.92" × 4.7" )
Weight:Apporx.650g(1.43 lb)
With Package Weight:Apporx.800g(1.76 lb)
